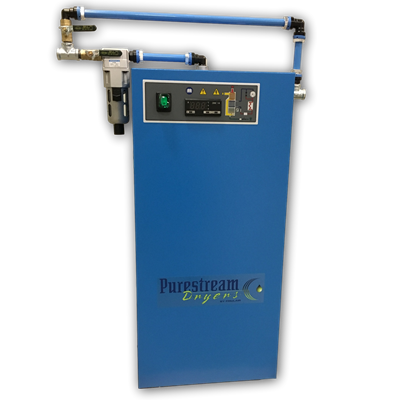

FREON-TYPE AIR DRYER 600 AND 800 CFM

Air Dryer
FREON-TYPE AIR DRYER 600 AND 800 CFM

This freon-type air dryer removes moisture from your compressed air to protect your equipment and process.

This dryer provides a constant dew point at 3⁰C. Perfect for an indoor application, where the working environment is never below freezing.
This dryer offers low-pressure drops and remains efficient at its limiting temperatures (70⁰C air inlet and 50⁰C ambient).

Simplified control.

Warranty:
Two years with coalescing filter (installed at dryer inlet).

CSA approved

Available on demand Contact us for purchase

TECHNICAL SHEET
FEATURES	ACT-600	ACT-800
VOLTAGE \| UQ	575 THREE-PHASED	575 THREE-PHASED
AMPERAGE \| UQ	3,3 A	4 A
CFM	600	800
GAS	R407C	R407C
INPUT/OUTPUT CONNECTION	3" 150#FL.	3" 150#FL.
LENGHT (in)	31,1"	31,1"
WIDTH (in)	39,4"	39,4"
HEIGHT (in)	57,7"	57,7"
WEIGHT	529 LBS	534 LBS
