SÉCHEUR D'AIR DE TYPE FRÉON 15 CFM - 120 V MONOPHASÉ

Air Dryer

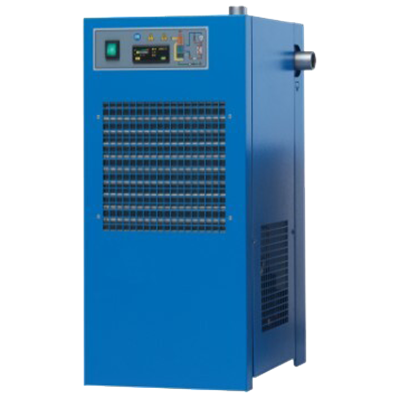

FREON-TYPE AIR DRYER 15 TO 71 CFM - 120 V SINGLE-PHASED

In stock

This freon-type air dryer removes moisture from your compressed air to protect your equipment and process.

This dryer provides a constant dew point at 3⁰C. Perfect for an indoor application, where the working environment is never below freezing.
The high efficiency exchanger made of stainless steel provides extended life.

Simplified control.

Warranty:
One year without coalescing filter
Two years with coalescing filter (installed at dryer inlet)

CSA approved

TECHNICAL SHEET
FEATURES	SMC-15	SMC-25	SMC-41	SMC-59	SMC-71
MODEL	IDFB4E-11N	IDFB6E-11N	IDFB8E-11N	IDFB11E-11N	IDFB15E-11N
VOLTAGE	120 V SINGLE-PHASED	120 V SINGLE-PHASED	120 V SINGLE-PHASED	120 V SINGLE-PHASED	120 V SINGLE-PHASED
AMPERAGE	3 A	3 A	3,5 A	6,5 A	7,5 A
CFM	15	25	41	59	71
GAS	R134A	R134A	R134A	R134A	R134A
INPUT/OUPUT CONNECTION	1/2" NPT	3/4" NPT	1/2" NPT	3/4" NPT	1" NPT
LENGHT (in)	10,6"	10,6"	10,6"	10,6"	11,8"
WIDTH (in)	17,8"	17,9"	19,1"	19,1"	23,7"
HEIGHT (in)	19,6"	19,6"	22,4"	22,4"	22,8"
WEIGHT	55 LBS	57 LBS	64 LBS	73 LBS	110 LBS
