FREON-TYPE AIR DRYER 250 CFM | Compresseurs Supair

Air Dryer

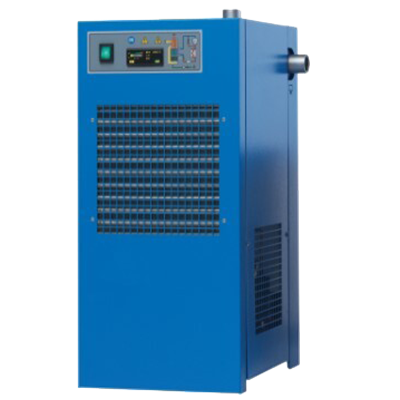

FREON-TYPE AIR DRYER 250 TO 400 CFM

This freon-type air dryer removes moisture from your compressed air to protect your equipment and process.

This dryer provides a constant dew point at 3⁰C. Perfect for an indoor application, where the working environment is never below freezing.
This dryer offers low-pressure drops and remains efficient at its limiting temperatures (70⁰C air inlet and 50⁰C ambient).

Simplified control.

Warranty:
Two years with coalescing filter (installed at dryer inlet).

CSA approved

Available on demand Contact us for purchase

TECHNICAL SHEET
FEATURES	ACT-250	ACT-300	ACT-350	ACT400
VOLTAGE \| UE VOLTAGE \| UQ	230 V SINGLE-PHASED 575 THREE-PHASED	230 V SINGLE-PHASED 575 THREE-PHASED	230 V SINGLE-PHASED 575 THREE-PHASED	230 V SINGLE-PHASED 575 THREE-PHASED
AMPERAGE \| UE AMPERAGE \| UQ	7,4 A 1,7 A	10,4 A 1,8 A	10,9 A 2,2 A	11,2 A 3,4 A
CFM	250	300	350	400
GAS	R407C	R407C	R407C	R407C
INPUT/OUTPUT CONNECTION	1-1/2"NPT	1-1/2"NPT	2"NPT	2-1/2"NPT
LENGHT (in)	21,9"	21,9"	21,9"	26,2"
WIDTH (in)	22,8"	24,6"	24,6"	28,5"
HEIGHT (in)	34,8"	38,4"	38,4"	43,5"
WEIGHT	139 LBS	227 LBS	236 LBS	331 LBS
