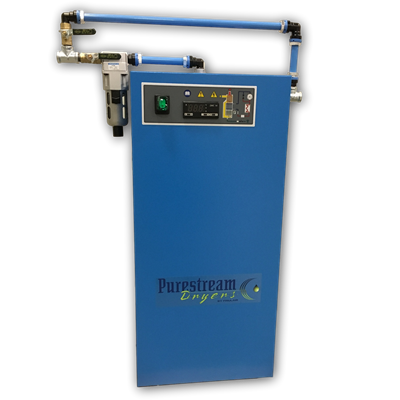

FREON-TYPE AIR DRYER 2500 TO 5000 CFM

Air Dryer
FREON-TYPE AIR DRYER 2500 TO 5000 CFM

This freon-type air dryer removes moisture from your compressed air to protect your equipment and process.

This dryer provides a constant dew point at 3⁰C. Perfect for an indoor application, where the working environment is never below freezing.
This dryer offers low-pressure drops and remains efficient at its limiting temperatures (70⁰C air inlet and 50⁰C ambient).

Simplified control.

Warranty:
Two years with coalescing filter (installed at dryer inlet).

CSA approved

Available on demand Contact us for purchase

TECHNICAL SHEET
FEATURES	ACT-2500	ACT-3000	ACT-3750	ACT-4000	ACT-5000
VOLTAGES \| UQ	575 THREE-PHASED	575 THREE-PHASED	575 THREE-PHASED	575 THREE-PHASED	575 THREE-PHASED
AMPERAGES \| UQ	11,4 A	18,1 A	18,1 A	19,1 A	27,1 A
CFM	2500	3000	3750	4000	5000
GAS	R407C	R407C	R407C	R407C	R407C
INPUT/OUTPUT CONNECTION	4" 150#FL.	6" 150#FL.	6" 150#FL.	8" 150#FL.	8" 150#FL.
LENGHT (in)	44,7"	51,2"	51,2"	55,1"	55,1"
WIDTH (in)	47,4"	68,9"	68,9"	88,6"	86,6"
HEIGHT (in)	68,7"	71,3"	71,3	73,6"	73,6"
WEIGHT	1567 LBS	1567 LBS	2070 LBS	2469 LBS	3090 LBS
